Velux Flashing Kit



Skylight flashings are essential to direct rain water away from the skylight. Velux Flashing Kits are safely constructed of aluminium and are free of lead. As such they are quite safe where rain water is collected from the roof.

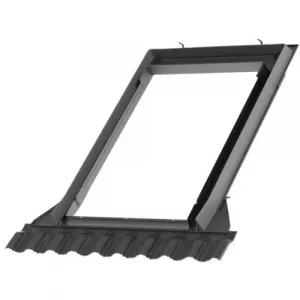

Velux Flashing Kit for Tile Roof

The Velux EDW flashing is designed for tiled roofs pitched between 15-90 degrees. Side and head pieces form a gutter to direct rain water around the skylight, a pleated apron at the bottom of the window discharges rain water back onto the roof below. The apron can be easily shaped to follow the profile of roof.


Velux Flashing Kit for Metal Roofs

Although Velux offer instructions for the EDW flashing installation to Corrugated Iron roofs, actually most installers prefer to use their own custom made flashings. The Edw flashing is definetely not compatible with other metal roof profiles.

EDL Flashing Kit for Slate Roofs

An EDL kit is available for Slate roofs.

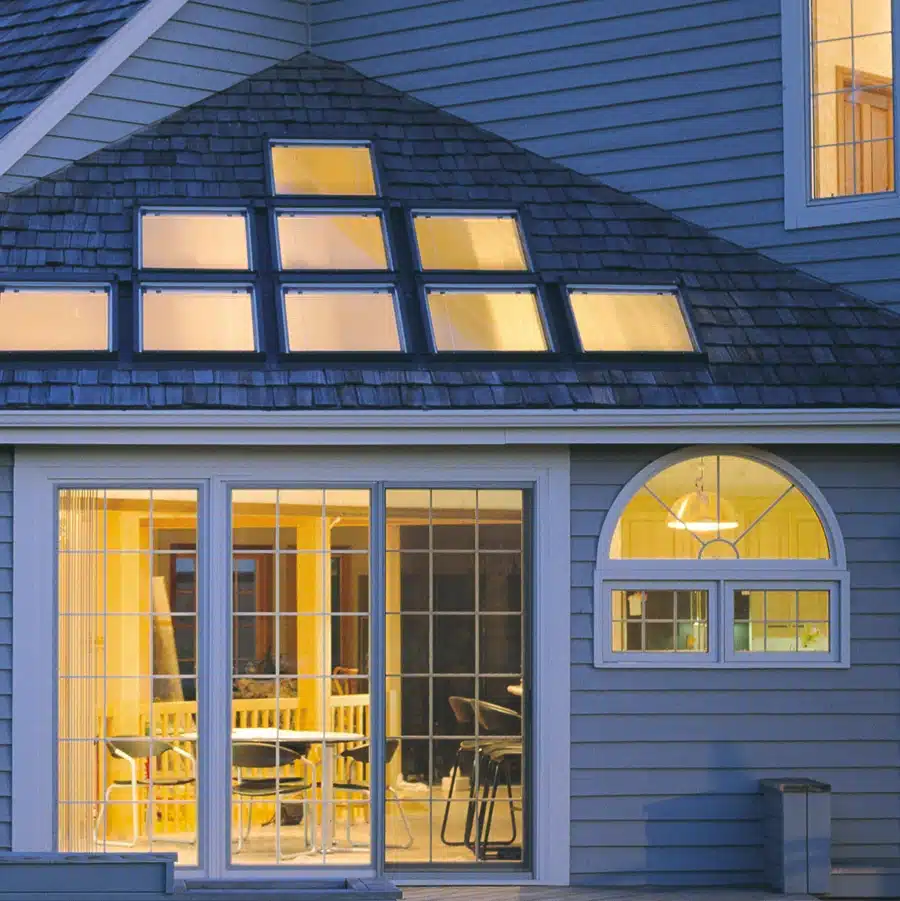

EKW Flashing Kit for Coupled Skylights

Velux have a full range of options for combining skylights into sets. This can be achieved not only horizontally (the most popular), but also vertically and even in grids, for more advice on these installations, please contact us directly. CONTACT US HERE.

Additional information

Weight N/A
Dimensions N/A
Velux Code


Size Code

C01, C04, C06, C08, C08,C06,C04,C01, C12, CK02, CK04, M04, M06, M08, M08,M06,M04, MK04, MK06, MK08, S01, S06, S06,S01, SK06, M02
